Suitable for converting:
- Besam Unislide (needs additional pack 13 option)
- Besam EMC
- Besam EMD
- Geze TSA 350/360
- Geze Econodrive
- Tormax TEP/TLP
- Kaba/Gilgen SLM/SLP
- ATS 2000, 2001, 2002, TSF, TSS
- Record STA13
- Portalp Diva
- DAC 300
- Dorma ES90

Features & Benefits

• The mechanical and electrical components have been tested to 1,000,000 cycles with 200kg load
• Fitted into a minimum of 11 different drive units plus the Dorma ES90
• Can be used in drives with left or right positioned motors
• Suitable for door widths greater than 400mm
• All parameters the same as the ES200 Standard drive unit
• Conversion time approximately 3 hours
• Failsafe battery included in kit

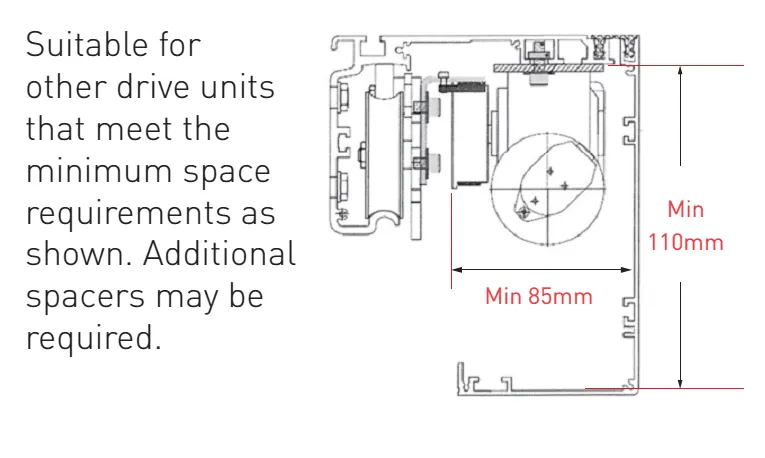

• Suitable for drives not listed above where there is sufficient space (see drawing)
• Operator specific conversion instructions included

Note: FM module is required when using rear edge safety sensors

Accessory prices are only available when ordered with the retrofit kit.
