Specs

Model:

MTX80z

Item #:

079010

Drive Size:

1/4" F/Sq

American:

8 - 80 ozf.in

S.I.:

5.7 - 56.5 cN.m

Metric:

0.6 - 5.8 kgf.cm

Tool Length:

2.55

Tool Width:

1.6

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

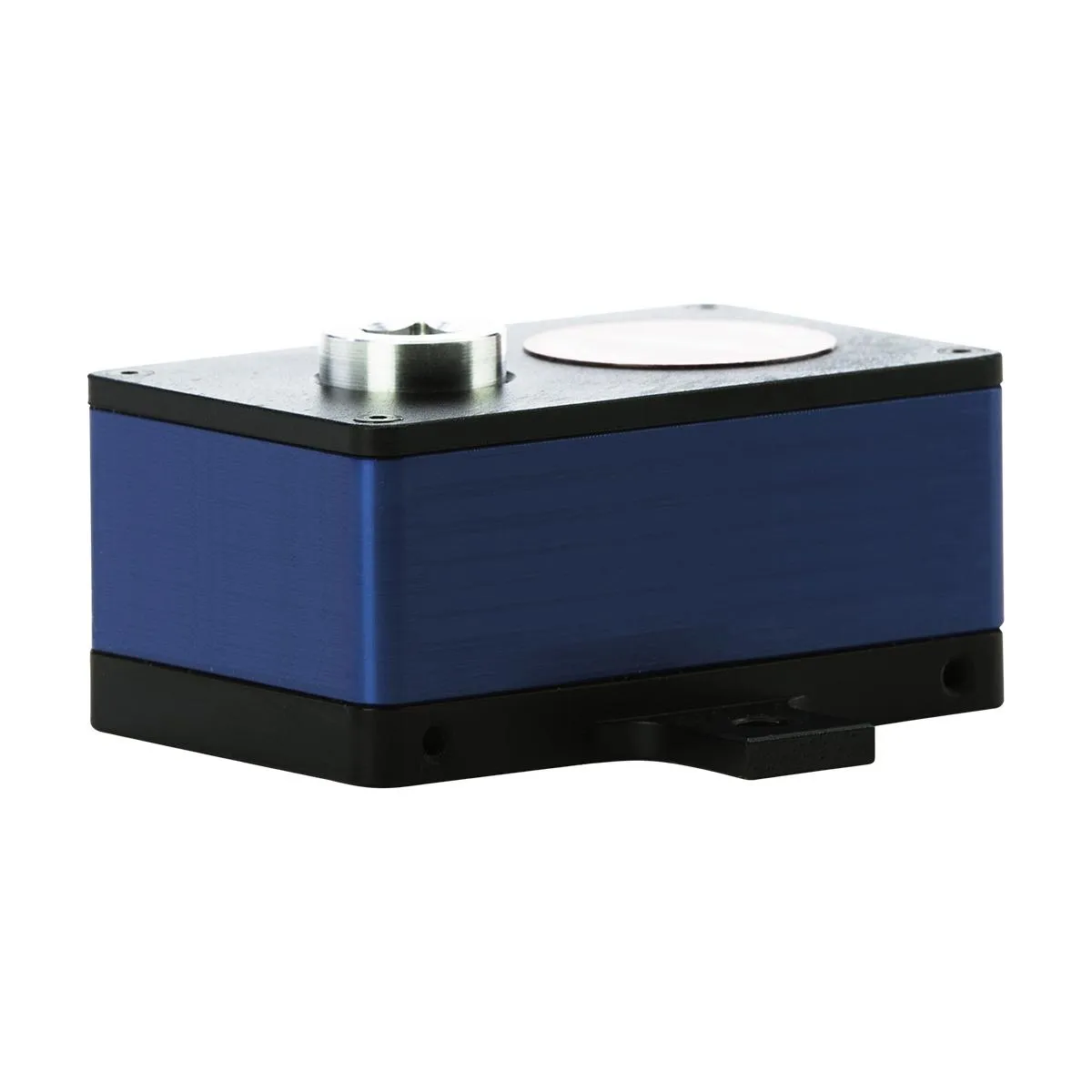

The MTX is a low torque sensor designed for calibrating and testing small hand screwdrivers, torque wrenches and power tools. With its low profile design, the calibration instrument can be used for automated applications, by mounting it to a palletized system. This saves time as there is need to remove the driver from the robot or off the automated system for calibration. These versatile torque sensors are used in conjunction with a torque tester.

Accuracy ± .25% of full scale

For calibrating low torque hand screwdrivers, wrenches and power tools.
The low profile design makes it ideal for calibrating robotic drivers on the assembly line.
Features ARCII technology, an instant auto-recognition system of the MTX connected to the or .
Mountable.
1/4” female square drive.
Bi-directional

This is the stand alone accuracy statement for the MTX torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Always use a run down adapter when testing power tools.
